FlightOps Airport Database CLI Simulator

Table of Contents

Overview

FlightOps Manager is a Python + MySQL CLI system designed to simulate core airport operational workflows in a realistic aviation domain.

Built for Database Design & Applications (EGE311), it demonstrates 3NF relational modelling, enforced integrity constraints, and a production-inspired operational layer with:

Role-based access control (Front Desk / Admin / Superadmin)
Schema-driven CRUD workflows across operational tables
Full audit logging (CREATE / READ / UPDATE / DELETE) for accountability
A polished Rich-powered terminal UI with guided input + validation guardrails

Problem

Airport operations contain tightly linked data: flights, aircraft assignment, crew scheduling, passenger identity, bookings, and movement records (arrivals/departures).

Spreadsheet workflows struggle with:

Integrity (invalid references, duplicated IDs, broken relationships)
Security (everyone can edit everything)
Traceability (no accountability of who changed what and when)

FlightOps solves this by combining a normalized MySQL schema, referential constraints, role separation, and audit trails in a structured CLI workflow.

Database Design (Normalisation → 3NF)

Before vs After ERD

The project begins with an unnormalized/early-stage ERD and progresses to a fully normalized 3NF schema.

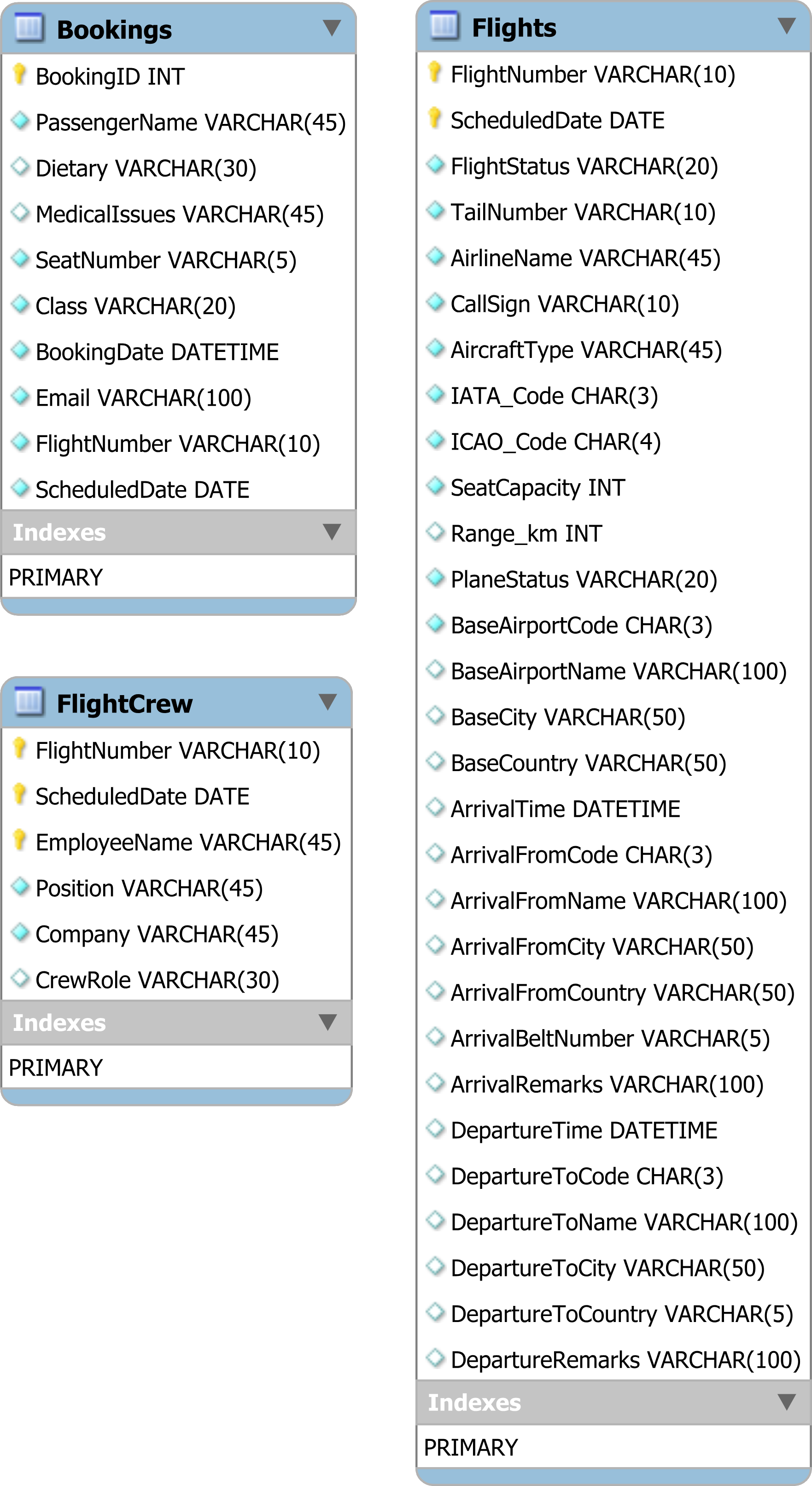

Figure: ERD before normalisation (1NF stage)

Figure: Normalised ERD (3NF)

Core Entities & Relationships (Logical Schema)

Tables (11 total):
Airports, Planes, Flights, Arrivals, Departures, Employees, Passengers, Bookings, FlightCrew, AdminUsers, AuditLog

Key relationships implemented via FK constraints (from database.sql):

Airports (1) → Planes (M) via Planes.BaseAirportCode → Airports.AirportCode
Planes (1) → Flights (M) via Flights.AircraftID → Planes.AircraftID
Flights (1) → Arrivals / Departures (M) via Arrivals.FlightID, Departures.FlightID
Flights (M) ↔ Employees (M) via junction table FlightCrew
- Composite PK: (FlightID, EmployeeID)
Passengers (1) → Bookings (M) via Bookings.PassengerID → Passengers.PassengerID
AuditLog references users with ON DELETE SET NULL to preserve logs even after user removal.

Key Features (with Screenshots)

1) Role-Based Access Control (RBAC)

Front Desk: view-only access to limited operational tables
Admin: CRUD on operational tables
Superadmin: full control, including AdminUsers and AuditLog

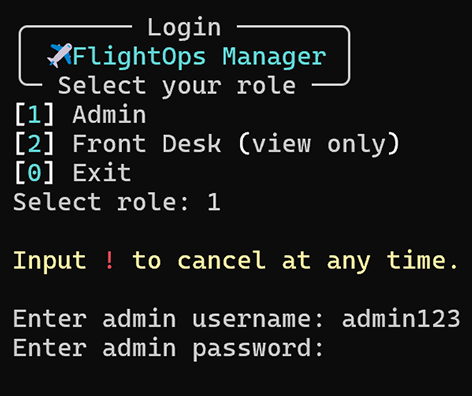

Role selection + system entry

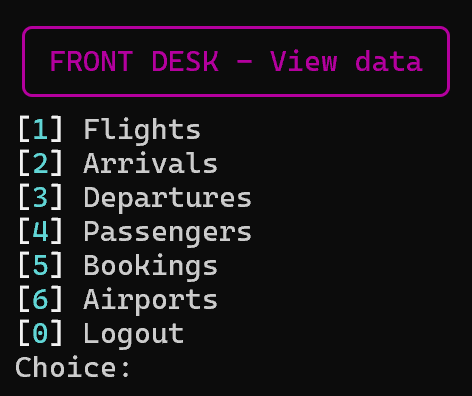

Front Desk menu (view-only)

Admin dashboard (CRUD access)

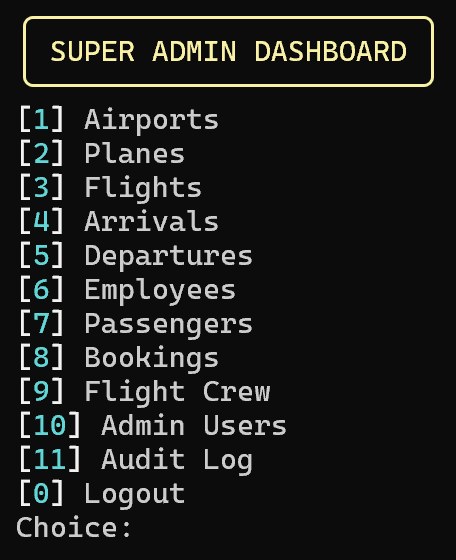

Superadmin dashboard (AdminUsers + AuditLog)

2) Schema-Driven CRUD (Dynamic Prompts + Validation)

The CLI introspects table structure at runtime using:

DESCRIBE <table> for columns + PK detection
information_schema.KEY_COLUMN_USAGE for FK references
This enables generic CRUD workflows across many entities without hardcoding forms.

CRUD Menu

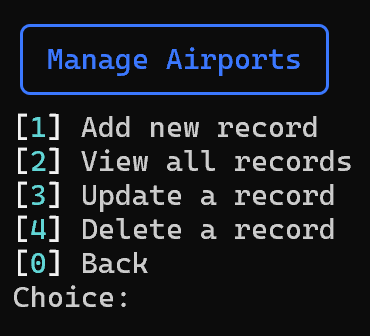

CRUD menu for an entity (e.g., Airports)

ADD (Create)

Schema-driven prompts with datatype constraints

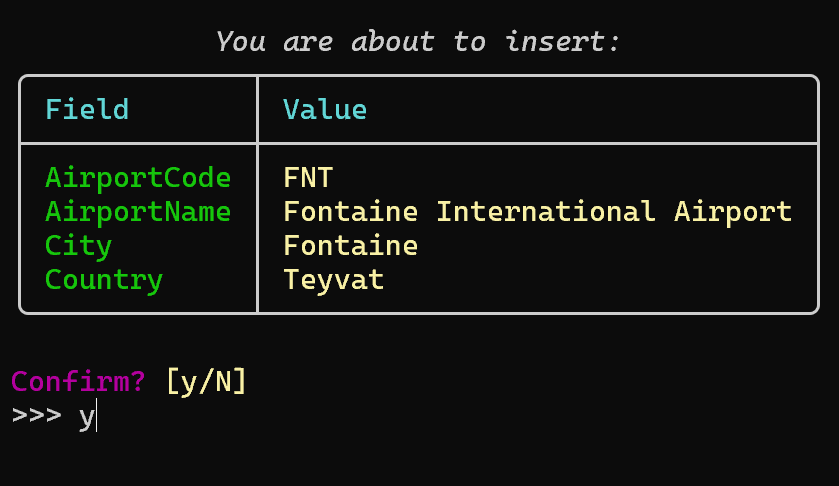

ADD: Preview + confirmation before commit

VIEW (Read)

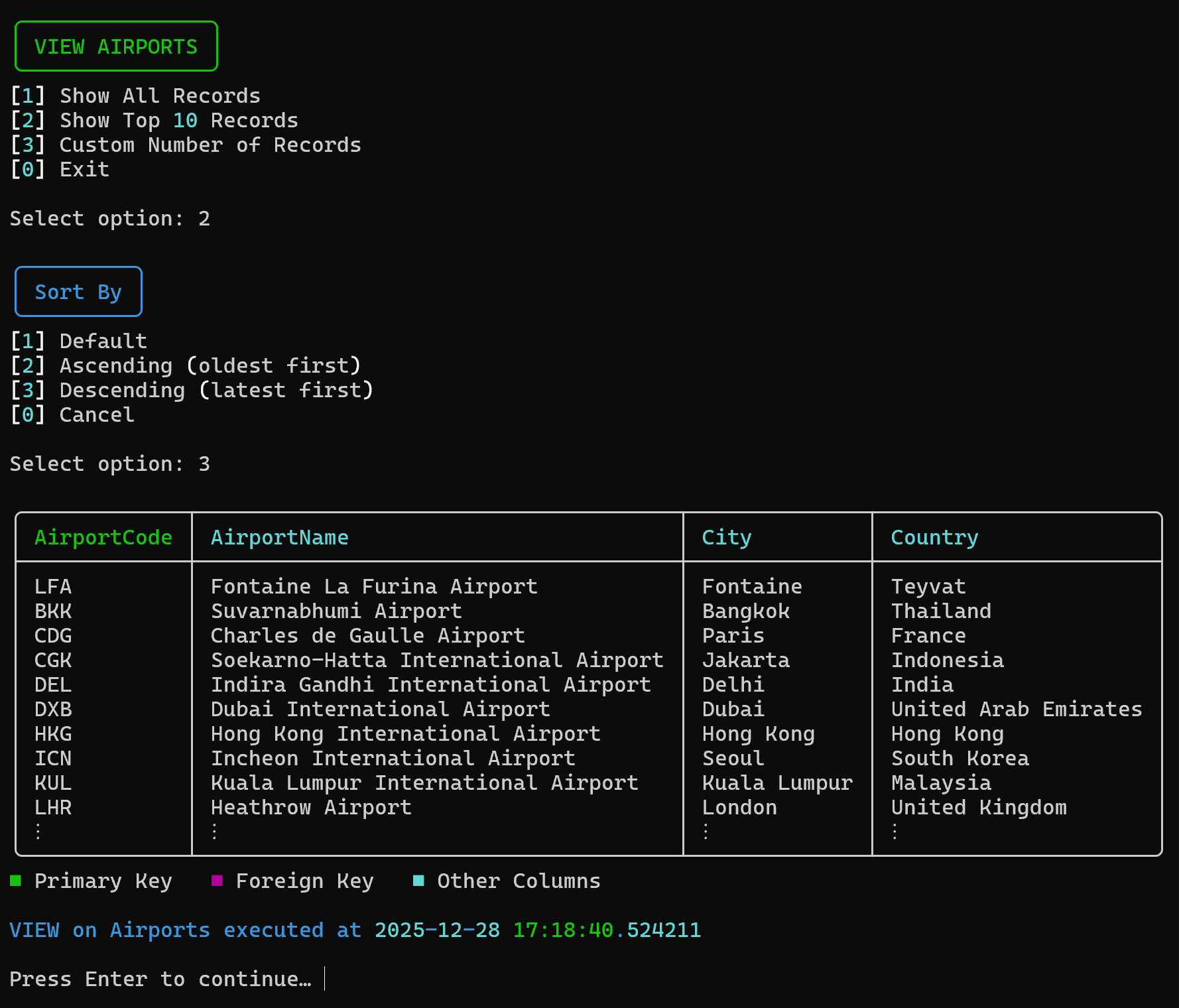

Rich table output with PK/FK visual legend

UPDATE

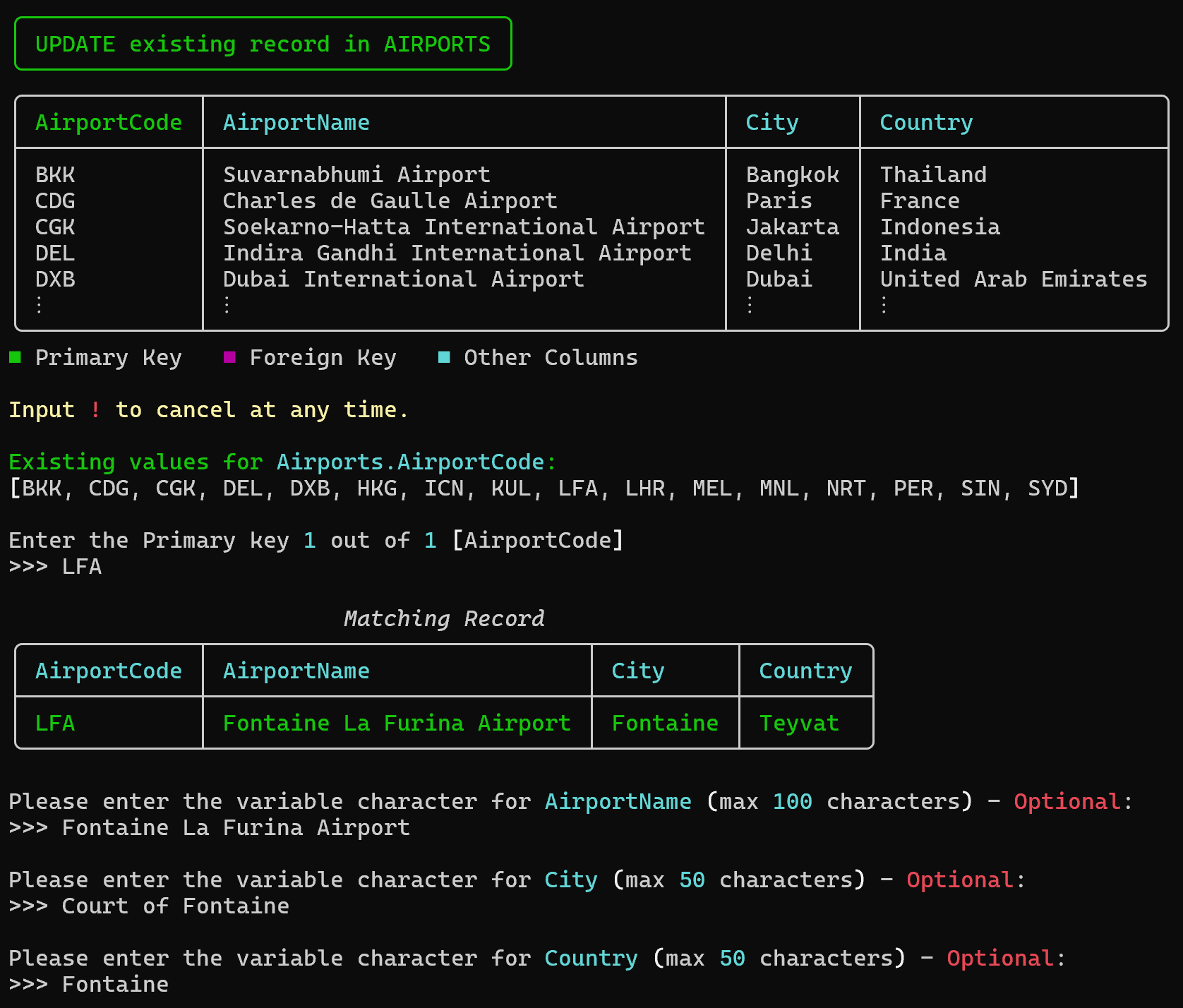

Schema-driven prompts with datatype constraints

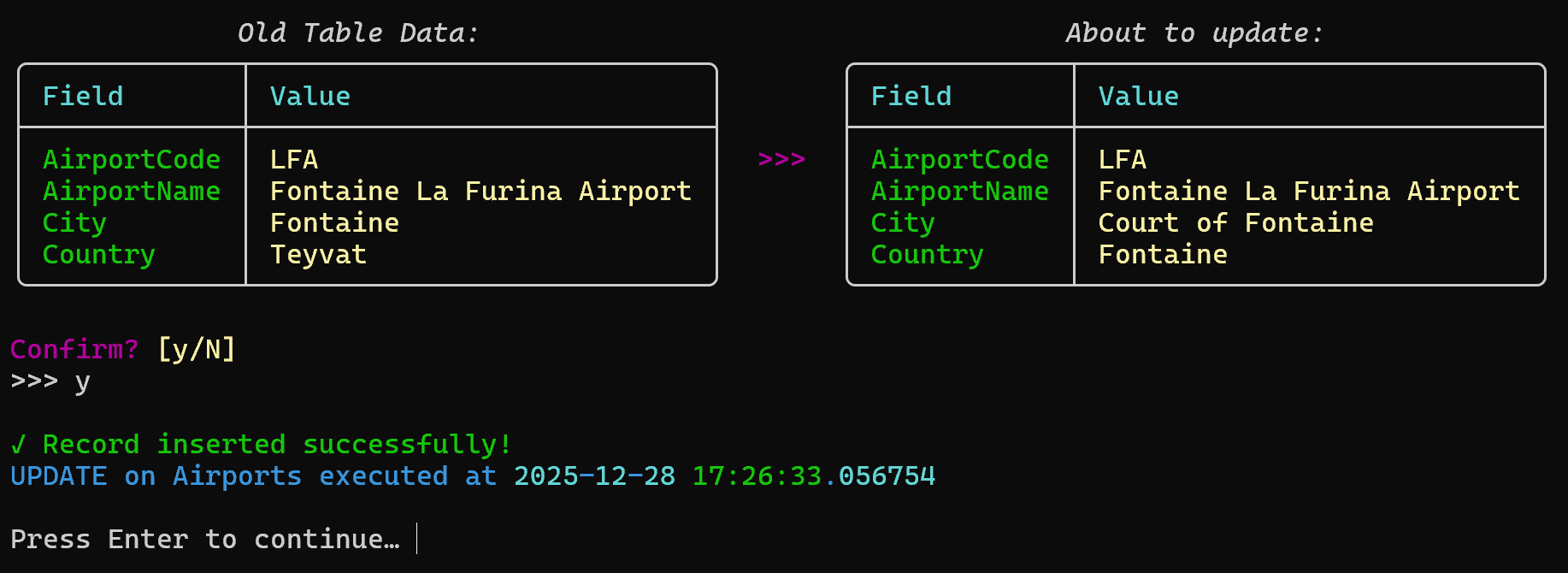

UPDATE: Preview + confirmation before commit

DELETE

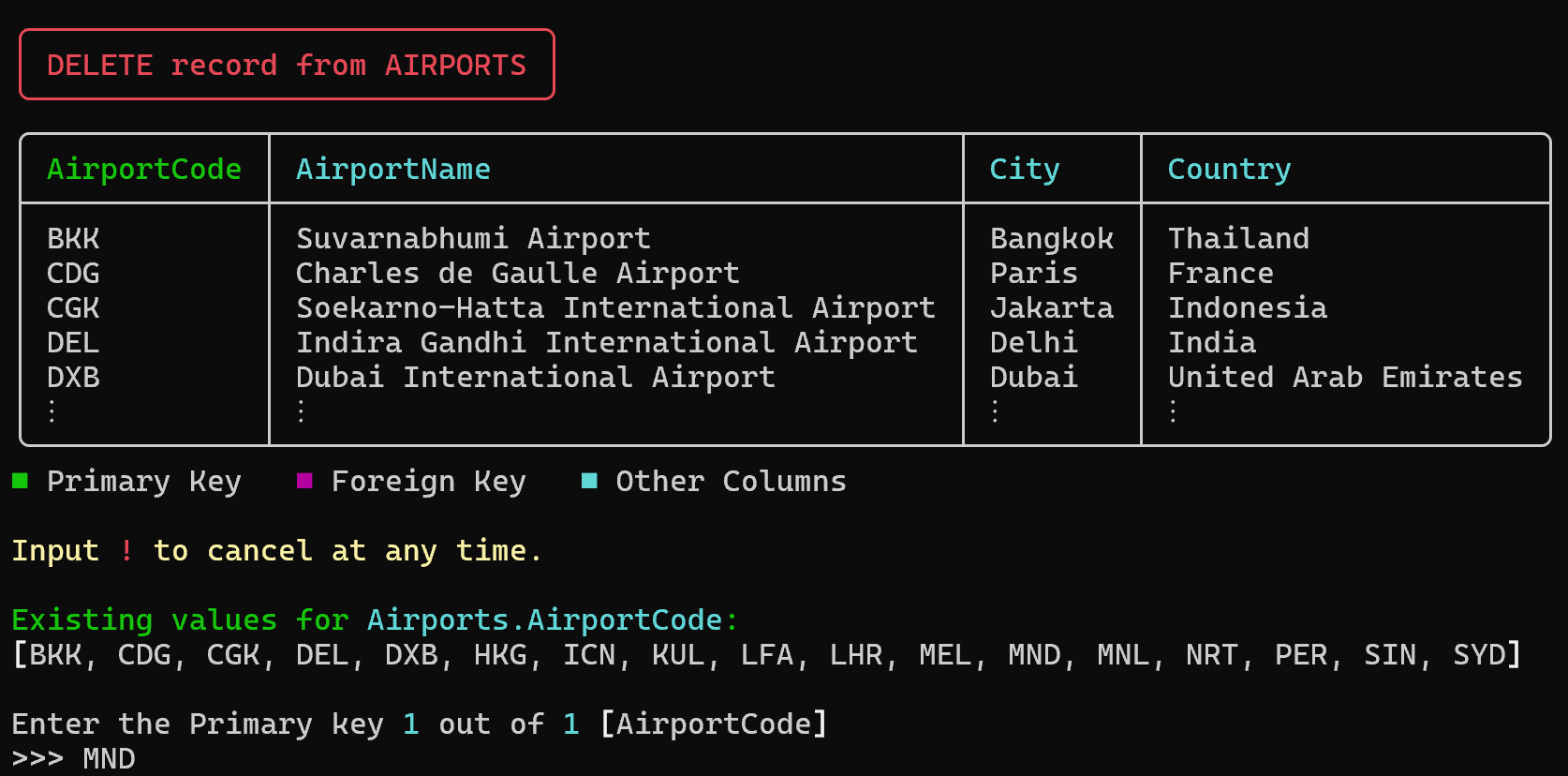

Schema-driven prompts with datatype constraints

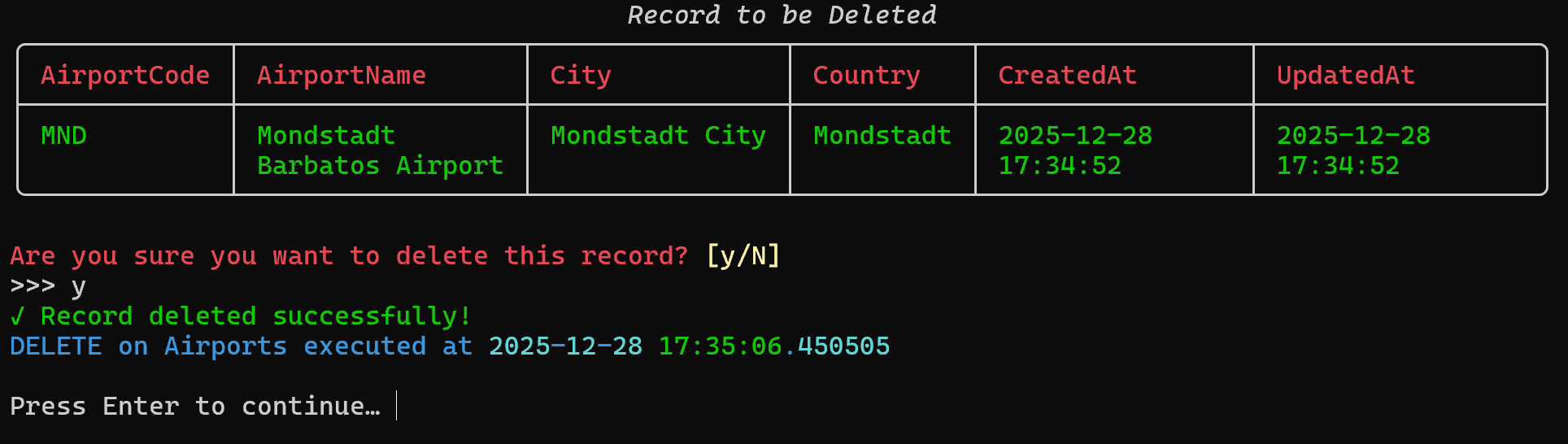

DELETE: Preview + confirmation before commit

3) Composite Primary Key Handling (FlightCrew)

For junction tables like FlightCrew, the system:

detects composite PK columns
forces user to input the full PK combination
validates uniqueness before insert/update

(Composite PK support is explicitly noted in project specs and implemented in code via PK column detection + uniqueness checks.)

4) Sorting / Record Viewing Controls

Records can be displayed as:

all rows
top 10
custom N
and optionally sorted by the appropriate timestamp column:
CreatedAt for most operational tables
AdminCreatedAt for AdminUsers
Timestamp for AuditLog

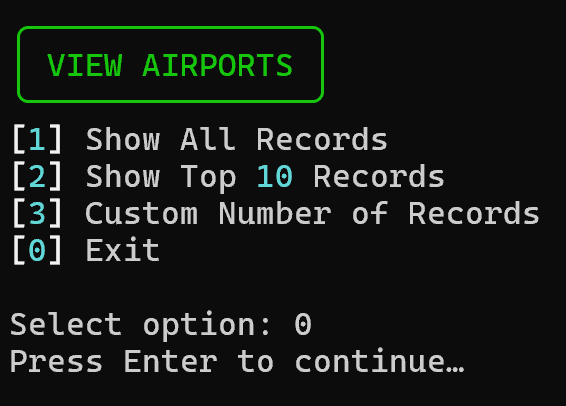

View mode selection (All / Top 10 / Custom)

Sorting options (default / ASC / DESC by timestamp)

5) Audit Logging (Accountability by Design)

Every action generates an audit record containing:

Username, TableName, ActionType, Details, Timestamp
AuditLog is viewable only by Superadmin and cannot be modified through normal workflows.

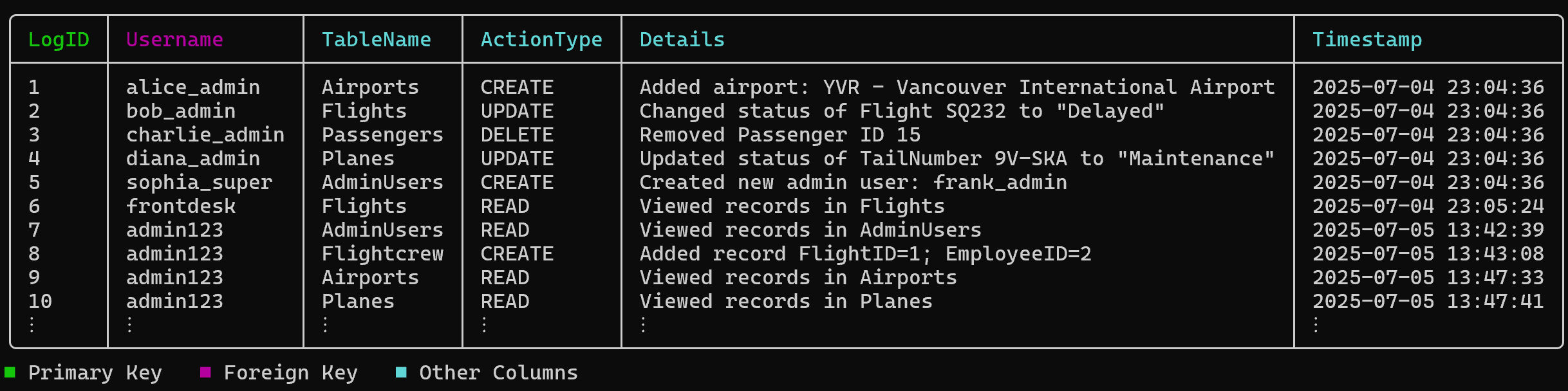

AuditLog output showing CRUD actions with timestamps

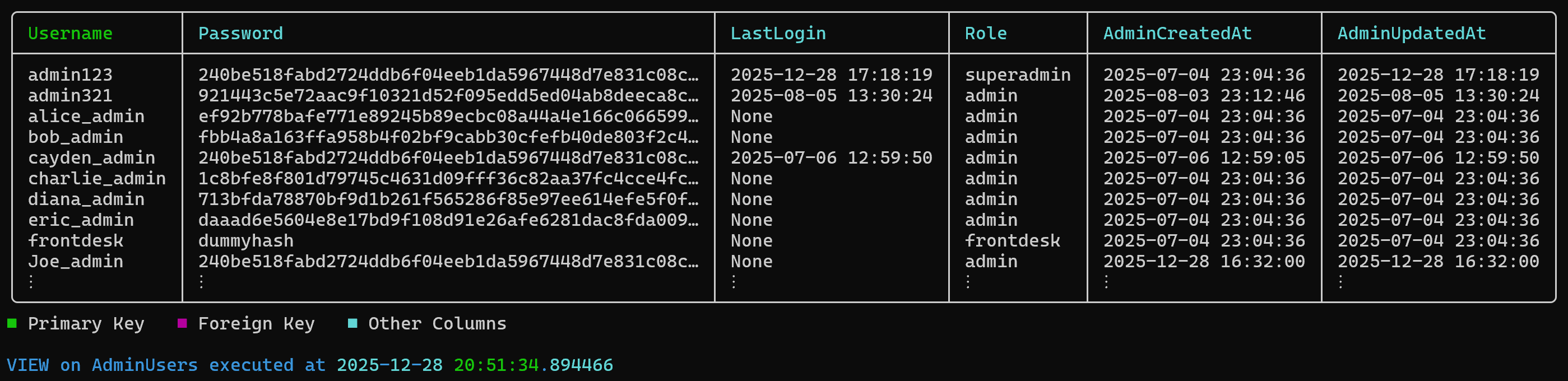

AdminUsers table (hashed passwords + role column)

6) ASCII Animation Splash Screen (Intro Sequence)

To enhance UX, the program plays an animated ASCII splash at startup (purely cosmetic).
The CLI loads pre-generated ASCII frames from a text file (e.g., frames.txt) and renders them in sequence in the terminal.

The animation does not affect database functionality or CRUD logic
Frames are stored as newline-separated blocks, making them easy to parse and play
Frames were generated using a separate utility tool (see Appendix A)

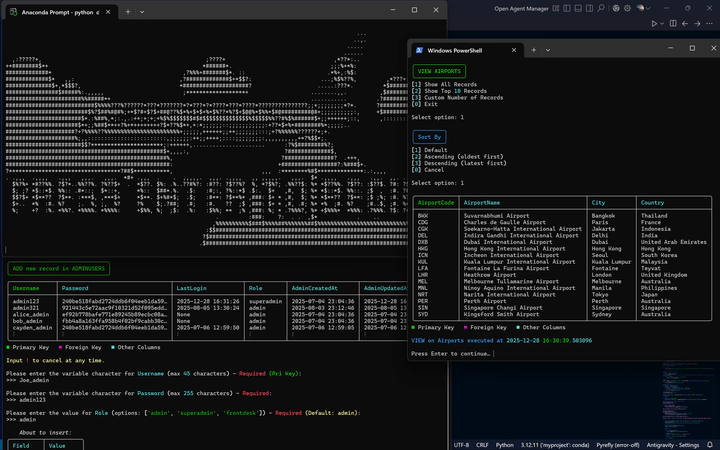

ASCII animation intro sequence

Security & Access Control

Admin authentication uses SHA-256 hashing (hashlib.sha256)
LastLogin timestamp is updated on successful login
Front Desk mode is accessible as a restricted view-only role
SQL injection is avoided via parameterized queries (Cursor.execute(SQL, params))

Tech Stack

Language: Python 3
Database: MySQL 8.0 (sg_airport_database)
Connector: mysql-connector-python
Terminal UI: rich (tables, panels, prompts, styling)
Schema Modelling: MySQL Workbench (database.mwb)

My Role

I designed and implemented the project end-to-end:

ER modelling and normalization to 3NF
Building the MySQL schema with FK constraints and timestamp columns
Implementing a generic CLI CRUD engine driven by schema introspection
Implementing composite PK workflows (FlightCrew)
Audit log architecture + enforcement of privileged access
UI/UX polish with Rich

Getting Started

Prerequisites: Python 3.8+, MySQL 8.0
Database Setup:
```
mysql -u root -p < database.sql
```

Install Dependencies:

pip install mysql-connector-python rich

Configure Connection: edit credentials in startup() inside database_cli.py
Run:
```
python database_cli.py
```

Project Structure

├── database_cli.py                       # Main CLI application
├── database.sql                          # Schema + sample data
├── database.mwb                          # MySQL Workbench model
└── frames.txt  # ASCII intro frames file (used by intro_sequence())

Outcome

This project demonstrates strong competency in:

Relational DB design: normalization, referential integrity, junction tables, composite keys
Software engineering: modular CLI design, reusable CRUD engine via schema introspection
Security: hashed credentials + role separation + last login tracking
Auditability: structured logging of operational changes with timestamps + attribution
UX polish: a readable, guided terminal workflow built with Rich

Appendix A — ASCII Animation Splash Screen

To enhance user experience, an ASCII animation is played at the start of the program (referenced under Special Features → Intro Sequence in the report). This animation was generated using a separate Python utility hosted here:

GitHub Repository

The tool converts a .gif into ASCII frames stored in a frames.txt file (or equivalent frames file). The animation is purely cosmetic and does not affect the functionality of the database application.

Supporting Tool: GIF → ASCII Animation Converter (Overview)

A lightweight Python utility that converts animated .gif files into animated ASCII art for terminal display. It can output frames to frames.txt and includes a simple terminal player.

Key capabilities

Converts GIFs to ASCII while preserving aspect ratio
Supports standard and multithreaded conversion modes
Outputs to frames.txt and optionally copies to clipboard
Includes a terminal animation player (ascii_player.py)

How frames are stored

Each ASCII frame is separated by two newlines (\n\n)
This makes parsing trivial: split by double-newline and render sequentially

Quickstart (tool repo)

pip install pillow pyperclip
python3 converter.py
python3 ascii_player.py
